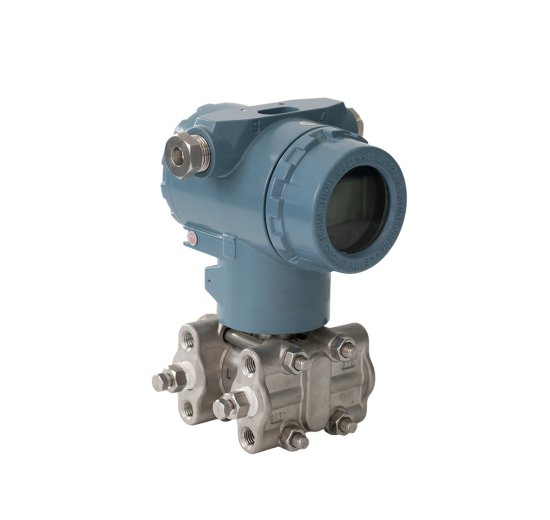

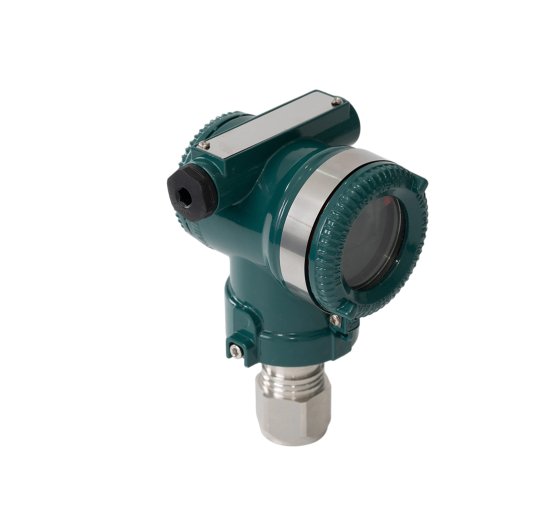

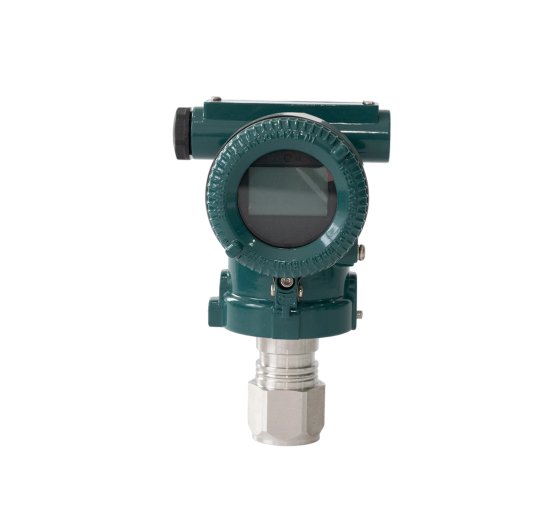

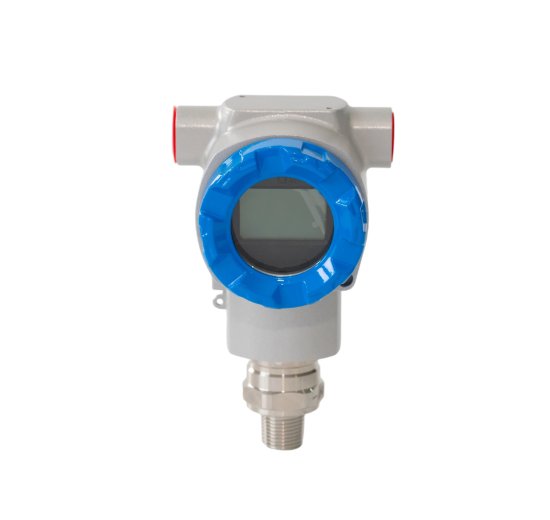

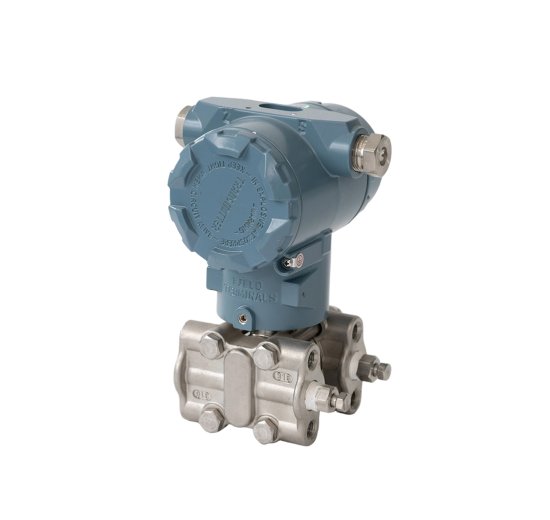

JPT305X monosilicon pressure transmitteris a high erformance pressure transmitter with international eading technology meticulously designed by JINGE nstrument,using the world's most advanced on osilicon pressure sensor technology and patent ncapsulation technology.JPT305X to easily cope with xtreme chemical occasion and mechanicalload,and wn strong resistance to EMI,sufficient to respond to he most rigorous industrial environment applications,hich are the genuine invisible instruments.
| Measuningrangeand limit | ||||
| Nominal value | Smallest calibratable span | Lower range limit(LRL) | Upper range limit(URL) | Overload limit |
| 0kPa | 2kPa | -10kPa | 0kPa | MPa |
| 250kPa | 12.5kPa | -100kPa | 250kPa | MPa |
| MPa | 50kPa | -100kPa | MPa | SMPa |
| 3MPa | 150kPa | -0.1MPa | 3MPa | 5MPa |
| 0MPa | 500kPa | -0.1MPa | 0MPa | 20MPa |
| 0MPa | 5MPa | -0.1MPa | 0MPa | 30MPa |
| Above measurementrange can be replaced by kg/cm2,MPa and kPa units.Which can provide other measurement range laccording to the requirements.Mdjust requirements:lower range value(1.RV and upper range value(LRV)can he adjusted within the scope of the upper and lower range limit,smallest calibratable span≤|URV-LRVI≤upper range limit | ||||
Standard specifications and reference conditions
Teststandard:GB/T28474/IEC60770;Zerobased-calibration span,Silicon oilfilling,316L stainless steel isolated diaphragm,4-20mA analog output.
Mounting position effects
Apply to any position Max value lover than 400Pa can be corrected by zero clearing function.
Performance specifications
The overall performance including butnot linited to【reference accuracy】,【environment temperature effects】and other comprehensiveerror
Typical accuracy:±0.1JRL
Stability:±0.2%URL/5 years
Vibration effects
According to GB/T 1827.3/IEC61298-3 tests,<0.1%URL
Output signal
4-20mA two wire.Customers can choose linear output or square rootoutput.Digital process variables superimpose on 4-20mA signal and apply to any hosts with HART protocol.
Reference accuracy
| Standard and reference conditions,including linearity (BFSL),hysteresis and repeatability.calibration temperature:20℃±5℃ | |||
| Linear output accuracy | TD≤10(Note1) | ±0.1%URI. | Nominal value: 40kPa,250kPa MPa,3MPa 1OMPa,40MPa |
| 10<TD≤20 | ±0.01%URL | ||
| Note 1:TD is Turn down,TD-URL/|URV-LRV | |||
Ambient temperature effects(Typical)
| Within the range-20-80℃ total mpact | ±(0.1+0.15TD SURL |
Insulation resistance
≥20MΩ6,100VDC
Power supply effects
Zero and span changeshouldnot be more than±0.005% URILN when power supply changes in 10.5/16.5-55VDC
