1 Split installation:Sensors(RTD or TC)are installed separately from temperature transmitters,with sensor fault alarms.

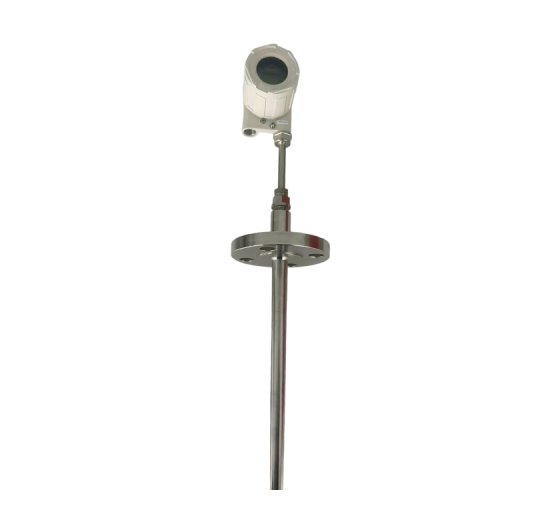

2 Integrated installation:Sensors(RTD or TC)are assembled together with modular temperaturetransmitters,equipped with sensor fault alarms.
When combined with the temperature transmitter,these components form a complete measuringpoint for a wide range of applications in the industrial sector.

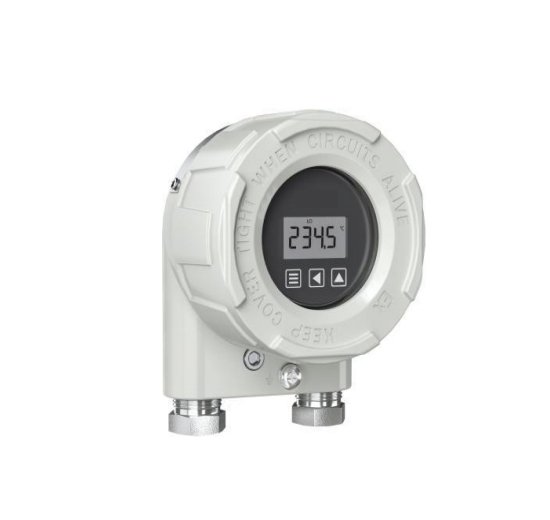

The device not only transfers converted signals from resistance thermometers and thermocouples,it also transfers resistance and voltage signals using HART®communication and as a 4to 20 mAcurrent signal.It can be installed as an intrinsically safe apparatus in hazardous areas.It is used forinstrumentation in the terminal head (flat face)as per DIN EN 50446,as a DIN rail device forinstallation in the control cabinet on a 35mm mounting rail as per EN 60715 or mounted in a2-chamber field mount housing with glass window and included plug-on display.
| Ambient temperature range | 40...+85℃(-40.….+185°F);for hazardous areas see Ex documentation |
| 50.…+85℃(-58..+185°F);for hazardous areas see Ex documentation,Customization required for use in low-temperature environments¹) | |
| Head transmitter,field mount housing with separate terminal compartment incl.display: 30...+80℃(-22 ...+176°F)。At temperatures<-25℃(-13 °F),the display may react slowly | |
| Storage temperature | Head transmitter:-50...+100℃(-58...+212°F) |
| Head transmitter,field mount housing with separate terminal compartment incl.display: -40...+85℃(-40...+185°F) | |
| DIN rail temperature transmitter:-40...+100℃(-40...+212°F) | |
| Altitude | Up to 4000m(4374.5 yards)above mean sea level. |
| Humidity | Condensation:Head transmitter permitted/DIN rail transmitter not permitted |
| Max.rel.humidity:95%as per IEC60068-2-30 | |
| Climate class | Head transmitter:climate class Cl as per IEC60654-1 |
| DIN rail device:climate class B2 as per IEC60654-1 | |
| Head transmitter,field mount housing with separate terminal compartment including display: climate Class Dx as per IEC60654-1 | |
| Degree of protection | Head transmitter:IP00 In installed state,depends on the field housing used. |
| When installing in field housing BS or DA、DH:IP65/IP67 | |
| Installed in field housing with a dual side:IP67 | |
| DIN rail transmitter :IP20 | |
Shock and vibration resistance | Vibration resistance as per DIN EN 60068-2-27 |
| ·Head transmitter :2...100 Hz,4g(increased vibration stress) | |
| ·DIN rail transmitter :2...100 Hz,0.7g(general vibration stress) | |
| Shock resistance as per KTA 3505(section 5.8.4 Shock test) | |
Electromagnetic compatibility(EMC) | CE compliance |
| Electromagnetic compatibility in accordance with all the relevant requirements of the IEC/EN 6132 series EMC.For details,refer to the Declaration of Conformity.All tests were passed both with and without ongoing digital HART°-communication. ·Maximum measured error<1%of measuring range. ·Interference immunity as per IEC/EN 61326 series,industrial requirements ·Interference emission as per IEC/EN 61326 series,Class B equipment | |
| Overvoltage category | Overvoltage category II |
