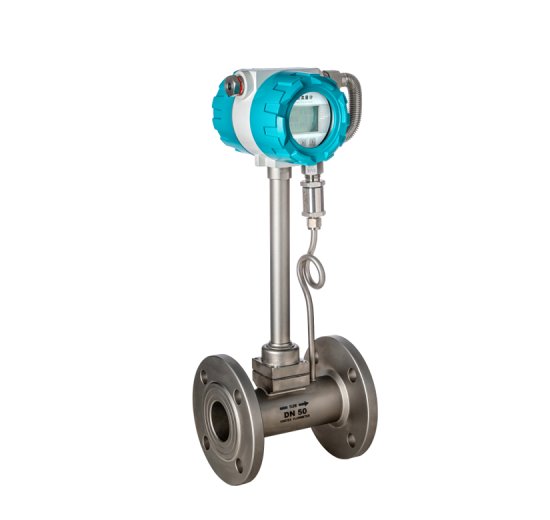

The LUGB series pipeline vortex flowmeters, developed based on Karman's vortex principle, are designed to measure the volumetric flow rate, standard condition flow rate, or mass flow rate of gases, steam, or liquids. As a velocity-type flowmeter, the strain-type vortex flowmeter is widely used in industries such as petroleum, chemical, power, light industry, and thermal power.
Ultra-high temperature resistance, can be used for a long time in-40℃~+330℃
Suitable for liquid, gas and steam medium measurement
No moving parts, stable and reliable, simple structure for easy installation and maintenance
The pressure loss is small (about 1/4 ~ 1/2 of the orifice flowmeter), which belongs to the energy saving flow instrument
The installation is flexible and convenient. According to the different process pipelines in the field, it can be installed horizontally, vertically or at different angles
Suitable for a wide range of pipe diameters, from DN20 to DN300
Multiple signal outputs: frequency, current, and communication interface
| Test medium | Liquid,one-way drying gas,steam | |
| Operative norm | Vortex flow sensor (JB/T9249-2015) | |
| Vertification regulation | Verification Regulations for Vortex Flow Meters(JJG 1029-2007) | |
| Class of accuracy | Liquid:1.5 grade,1.0 grade | Gas:1.5 grade,1.0 grade |
| Meter case | 304 stainless steel or 316 stainless steel | |
| Probe material | 304 stainless steel or 316 stainless steel | |
| Process connection mode | Flange connection type | DN20~DN300 |
| Flange clamp type | DN20~DN300 | |
| Applicable medium temperature | Room temperature,medium temperature | -40℃~+230℃ |
| High temperat- ure modification | -40℃~+330℃ | |
| Nominal pressure | PN16~PN40(Class150~Class300) | |
| Installambient temperature | -10℃~+55℃ | |
| Relative humidity | 5%~90% | |
| Atmospheric pressure | 86kPa~106kPa | |
Note:DN15 is a non-standard size.For customization,please consult the sales team.
