Protective devices should be installed in environments with rapid pressure changes, vibration, or pulsation.
Do not apply pressure during transportation, installation, or use.
Pressure gauges should be installed horizontally or vertically.
Normal pressure: Generally not exceeding 3/4 of the upper limit of measurement.
Alternating load: Not exceeding 2/3 of the upper limit of measurement.
Pressure control, alarm system
Oil-hydraulic press
Industrial special fluid line
Diameter: 100,150 mm
Accuracy & Mounting Type
| Item | Classification | Mark |
| Accuracy | 1.0 grade | CL1.0 |

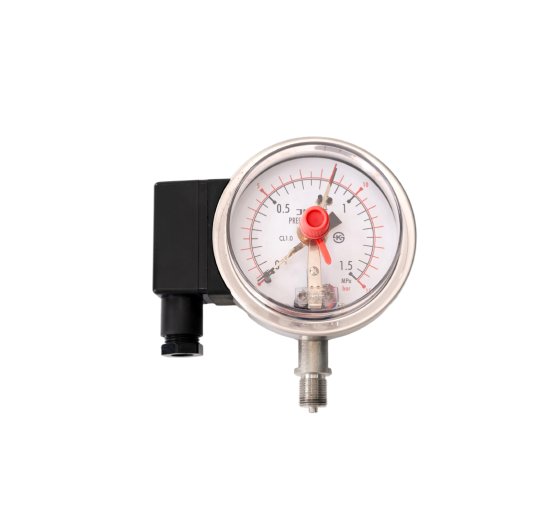

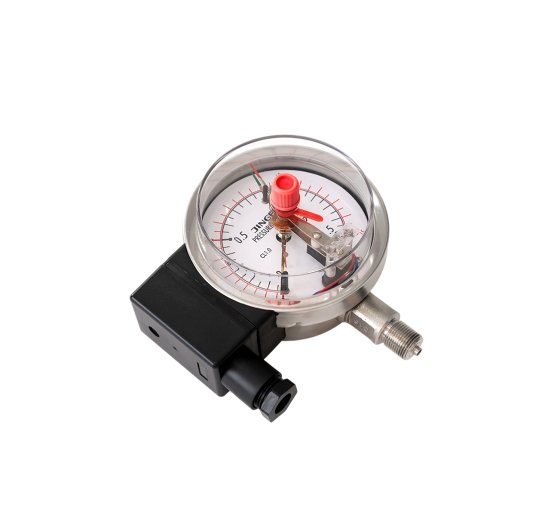

| Mounting Tyрe | Botiom Connecion, Drect | A-TYPE |
| Bottom Connedian, Surface | B-TYPE | |
| Badk Connedtion, Direct | D-TYPE | |

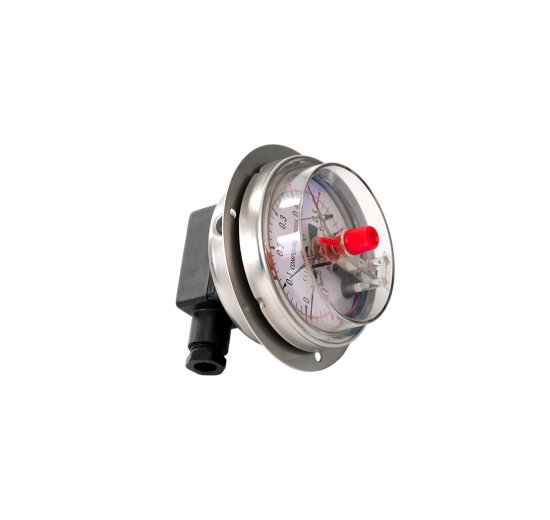

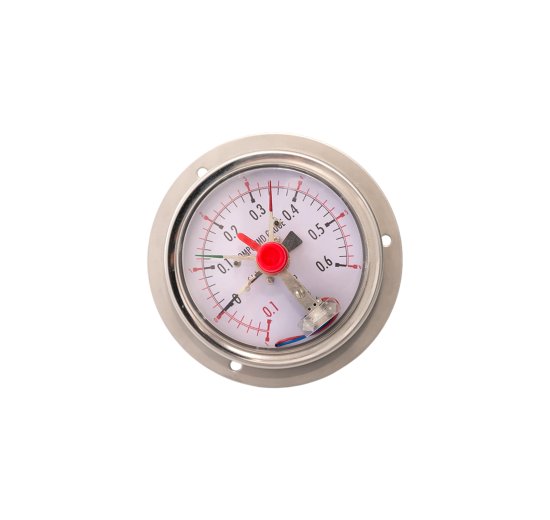

| Back Connection, Flush | BD-TYPE |
Scale Range/[unit:Mpa]
Ø100,Ø150:-0.1~2 to -0.1~0 to 0~100
Material
Case &Cover:STS 304
Bourdon Tube:STS 304,STS 316
Movement :STS 304
Dial:Aluminum
Connection :STS 316
-PT(NPT),PF⇔1/4,3/8,1/2 M20x1.5
Rated Voltage and Current of Contact
AC110V0.5A/220V0.25A
Contact From
SPST*1,SPST*2
High, Low, High/Low 2-contact
(High or Low,High &High,High &Low &Low)
