Protective devices should be installed in environments with rapid pressure changes, vibration, or pulsation.
Do not apply pressure during transportation and installation.
Pressure gauges should be installed horizontally and vertically.
Normal pressure: Generally not exceeding 3/4 of the upper limit of measurement.
Alternating load: Not exceeding 2/3 of the upper limit of measurement.
General piping line (Static Pressurized piping, non-corrosivegas piping, steam line and etc,)
Diameter: 40,50,60,75,100,150,200 mm
Accuracy & Mounting Type
| Item | Classification | Mark |
| Accuracy | 1.5 grade | CL1.5 CL1.6 |
| 3.0 grade | CL 3.0 CL 2.5 | |

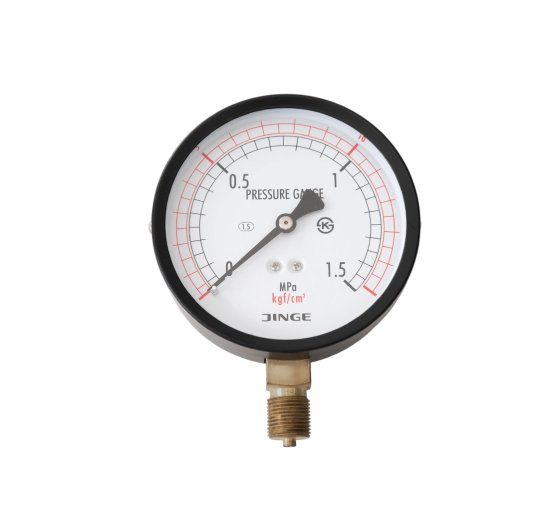

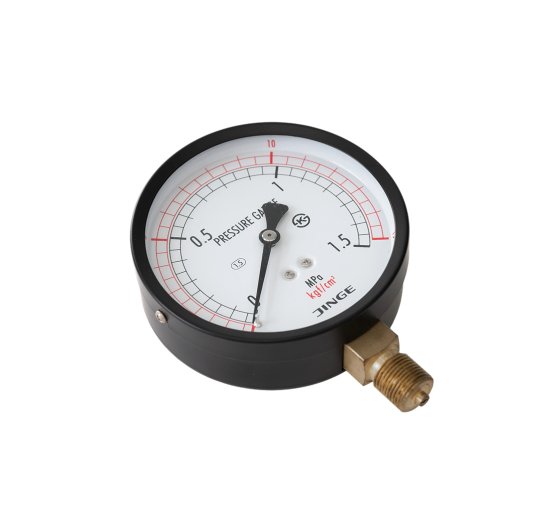

| Mounting Type | Bottom Cannedion, Direct | A-TYPE |
| Botom Cornecfon, Surace | B-TYPE | |
| Badk Carnecion, Diredt | D-TYPE | |

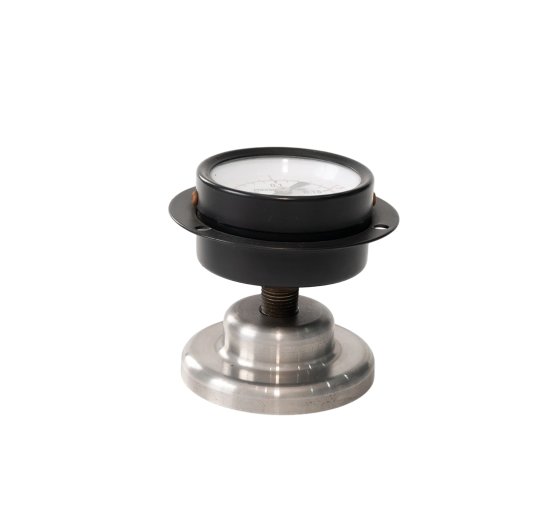

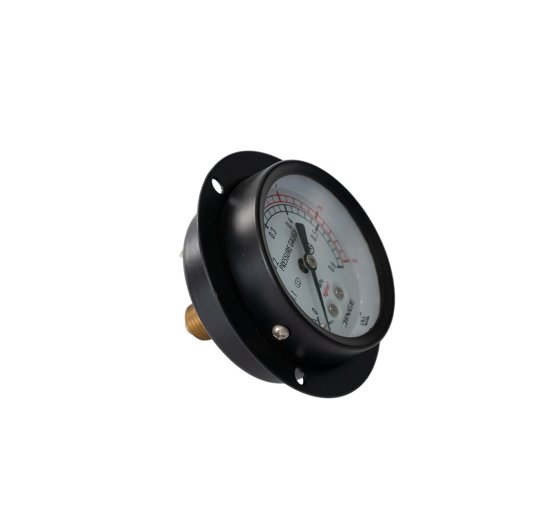

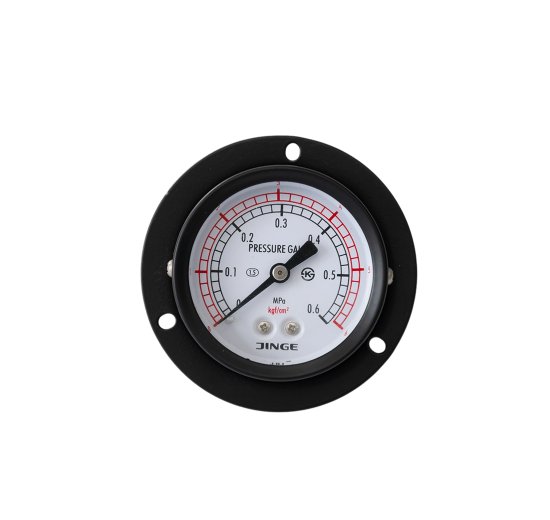

| Badk Connecian, Fush | BD-TYPE |
Scale Range/[unit:Mpa]
Ø40,Ø50:0~25
Ø60,Ø75:-0.1~2,-0.1~0,0~25
Ø100 :-0.1~2,-0.1~0,0~25(100)
Ø150 :-0.1~2,-0.1~0,0~100
φ200 :0~60
Material
Case &Cover :Steel(SPCD),Black Coating
Bourdon Tube:Brass(C2700T)
Movement :Brass
Dial :Aluminum
Connection :Brass(C3604BE)
-PT,PF→ 1/8,1/4,3/8,1/2 M10x1 M14x1.5
