Protective devices should be installed in environments with rapid pressure changes, vibration, or pulsation.
Do not apply pressure during transportation, installation, or use.
Pressure gauges should be installed horizontally or vertically.
Normal pressure: Generally not exceeding 3/4 of the upper limit of measurement.
Alternating load: Not exceeding 2/3 of the upper limit of measurement.

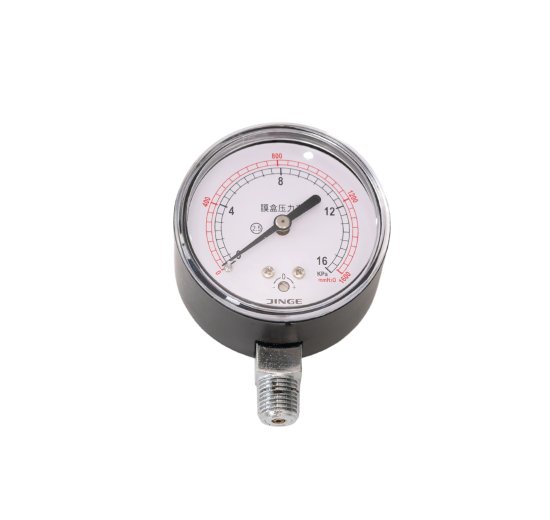

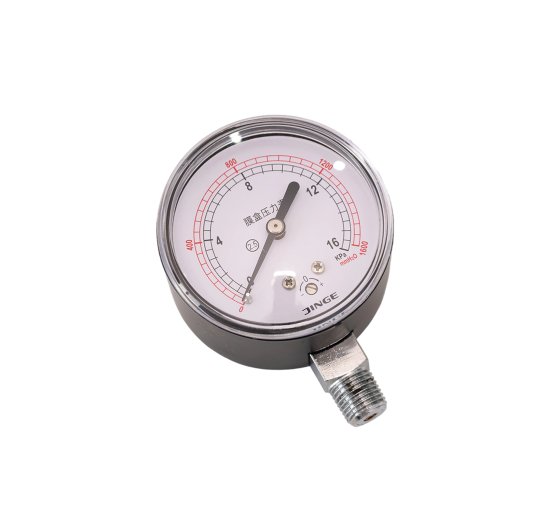

Low pressure measurement
Level measurement of tank
Gas conduit
Diameter: 75,100 mm
Accuuracy&MountingType
| Item | Classification | Mark |
| Accuracy | 1.5 grade | CL1.5 CL 2.5 |
| Mounting Type | Bottom Connecion, Direct | A-TYPE |
| Botom Gonnedion, Surface | B-TYPE | |
| Badk Connedion, Diredt | D-TYPE | |
| Badk Connedion, Fush | BD-TYPE |
Scale Range/[unit:Mpa]
-30~0 to -5~5 to -10~10 to 0~50
Material
Case &Cover:SS-3051,3052 Steel(SPCD)-Cr-Plating
Chamber :Phosphor Bronze
Movement :Brass
Dial :Aluminum
Connection :Brass(C3604BE),STS 304
-PT(NPT),PF→ 1/4,3/8,1/2
